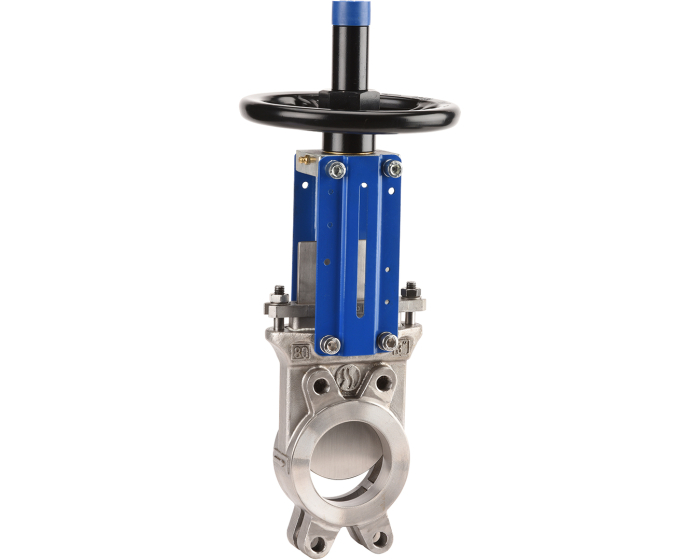

The 173 series unidirectional knife gate valve is made of stainless steel with metal seat, rising stem, non rising handwheel, lug type, PN10 flange connection. It is suitable for waste water, paper pulp, chemical, food industry, powder.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Opening device | Handwheel |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Stainless steel AISI 304 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 40.0 |
| Sealing | Metal / Metal |
| Fluid | Abrasive fluids / Dirty water / Sludge |
| Body material | Stainless steel CF8M (1.4408) |
| Packing gland | Yes |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 |
| Seats | Stainless steel AISI 316 |
| TS max (°C) | 110 |
| TS min (°C) | -15 |
| Warranty period | 2 years |
| Type of stem | Rising |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN50 - 2'' | 173050 | S1010252 |
€264.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN65 - 2''1/2 | 173065 | S1010253 |
€323.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN80 - 3'' | 173080 | S1010254 |
€345.31
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN100 - 4'' | 173100 | S1010255 |
€397.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN125 - 5'' | 173125 | S1010256 |
€475.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN150 - 6'' | 173150 | S1010257 |
€580.17
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN200 - 8'' | 173200 | S1010258 |
€902.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN250 - 10'' | 173250 | S1010259 |
€1,380.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Stainless steel CF8M (1.4408) DN300 - 12'' | 173300 | S1010260 |
€2,168.10
(excl. btw)
|
add to cart |
